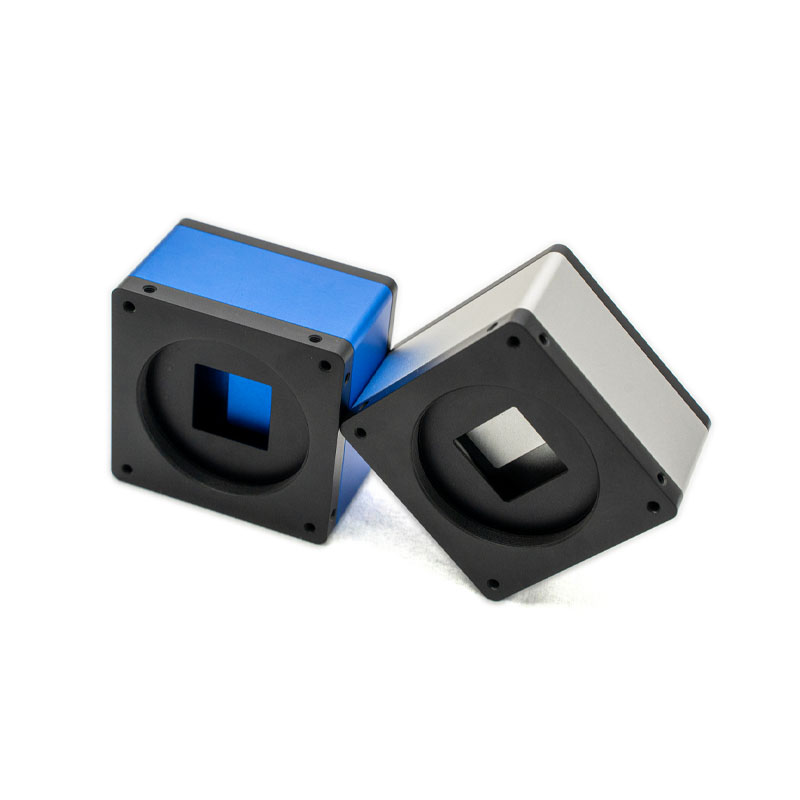

Industrial Camera Aluminum Alloy Housing

Industrial Camera Enclosure Overview & Thermal Management

When securing sensitive optical equipment in demanding operational environments, the physical enclosure dictates the lifespan and reliability of the internal components. This industrial camera aluminum alloy housing is engineered to deliver absolute structural integrity and environmental isolation. It is finished using CNC machine tools, and the surface is sandblasted and anodized. It has an exquisite appearance and a dimensional accuracy of ±0.03MM. This microscopic tolerance level guarantees that internal camera modules sit perfectly flush against the mounting plates, eliminating micro-vibrations that typically cause image blurring in heavy machinery environments. Upon handling the unit, operators will immediately notice the solid, dense feel of the metal construction. The matte finish not only eliminates reflective glare that could interfere with visual inspections but also provides a smooth tactile surface that actively repels industrial oils and resists abrasive wear.

To address the intense heat generated by continuous-duty industrial cameras, this enclosure utilizes the natural thermal conductivity of the aluminum alloy. The structural design incorporates passive cooling pathways, rapidly drawing heat away from the internal processor and sensor components and dissipating it into the surrounding air. This efficient thermal management prevents thermal throttling, ensuring the camera maintains stable frame rates and prolonged operational longevity even during continuous operation on hot factory floors.

Environmental isolation remains a critical factor for long-term deployment. The housing is engineered to provide rigorous ingress protection, offering performance ratings ranging from IP65 to IP68 depending on the specific sealing configuration selected. This means the internal optical cavity remains completely shielded from microscopic dust particles, pressurized water jets, and even complete submersion. Furthermore, the enclosure meets stringent international safety and operational standards, fully complying with CE, RoHS, and FCC requirements. For facilities operating in hazardous locations, the structural integrity also supports ATEX and IECEx compliance, delivering the necessary explosion-proof characteristics required for volatile atmospheres.

Engineering Specifications & Application Capabilities

Through the precise execution of CNC finishing molding, surface sandblasting and anodizing, exquisite appearance, dimensional accuracy ±0.03MM, this enclosure transcends basic protection to become an active component of your monitoring infrastructure. The meticulous manufacturing process ensures that the housing can endure severe mechanical stress without deformation, adapting to a wide variety of industrial scenarios.

Extreme Environmental Adaptability

The anodized exterior acts as a formidable barrier against corrosive agents commonly found in chemical processing plants or marine environments. The rigid aluminum chassis absorbs and neutralizes low-frequency vibrations from stamping presses and conveyor systems. Additionally, the material properties allow the housing to maintain its structural stability across extreme temperature fluctuations, preventing the metal from warping when exposed to freezing outdoor conditions or intense radiant heat in metallurgical facilities.

Equipment Compatibility and Installation

Integration into existing infrastructure is streamlined through standardized mounting interfaces. The base and sides feature precision-tapped 1/4"-20 threaded holes. When threading the mounting bolts into these interfaces, technicians will feel the smooth, precise engagement of the machined threads, ensuring a lock-tight fit that resists loosening over time. Cable management is handled via heavy-duty explosion-proof cable glands, which utilize thick rubber compression seals to grip the cabling firmly. This creates a tight mechanical barrier around Ethernet, power, and trigger cables, preventing moisture ingress at the connection points while accommodating a wide variety of mainstream camera brands.

Typical Application Scenarios

This housing is specifically designed for complex monitoring and inspection tasks where standard enclosures fail to provide adequate protection:

• Machine Vision Systems: Securing high-speed cameras over automated production lines where vibration resistance is critical for capturing sharp, unblurred images of fast-moving parts.
• Petrochemical Processing: Monitoring valves and pressure gauges in volatile atmospheres where explosion-proof (ATEX/IECEx) and corrosion-resistant properties are mandatory for facility safety.
• Mining and Extraction: Shielding fragile optical sensors from heavy particulate matter, abrasive rock dust, and physical impacts in subterranean or open-pit operations.
• Outdoor Perimeter Security: Protecting surveillance equipment from torrential rain, snow accumulation, and extreme UV exposure across expansive facility perimeters.

Customization and Extension Accessories

Recognizing that no two operational environments are identical, the housing architecture supports a wide array of functional add-ons. Operators can equip the unit with custom-fitted sunshields to reduce internal temperatures in direct sunlight, automated lens wipers to clear debris and precipitation from the viewing window, and integrated infrared illuminators for zero-lux monitoring. Furthermore, we provide tailored customization services, adjusting the internal dimensions, window materials, and interface layouts to match the exact specifications of specialized optical projects.
