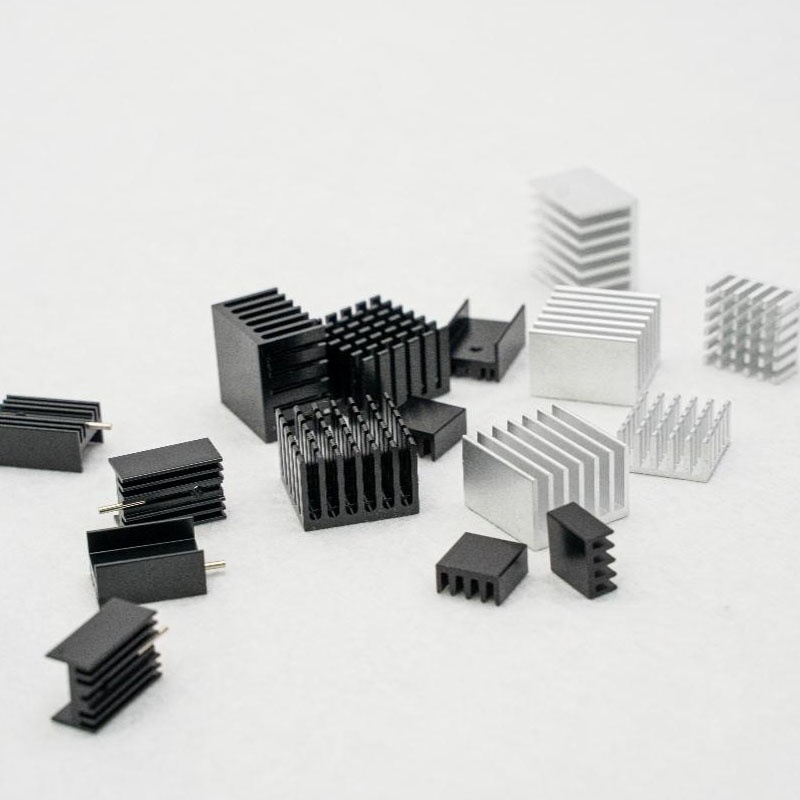

Heat Sink

Profile abrasive extrusion molding, CNC hook throwing machine processing, smooth cut surface, high processing efficiency, low cost, surface anodization. Engineered for rigorous thermal environments, this cooling component builds upon these core manufacturing strengths to deliver exceptional heat dissipation. Upon handling the component, the anodized finish provides a distinct, durable, and slightly textured surface that protects against environmental oxidation while actively enhancing thermal emissivity. The structural integrity feels exceptionally solid yet optimized for weight, delivering a reliable foundation for managing concentrated thermal loads from critical electronic assemblies. The cool metallic touch and the precise visual alignment of the fins reflect the stringent manufacturing tolerances applied to every single unit, ensuring consistent performance across demanding applications.

Comprehensive Thermal Management Capabilities

Engineered Materials and Structural Geometry

Balancing thermal conductivity with strict weight constraints requires precise material selection. These thermal modules are available in high-thermal-conductivity copper for maximum heat transfer and lightweight aluminum alloys for weight-sensitive engineering demands. The dense, cool touch of the copper variants provides maximum thermal absorption, while the aluminum options deliver exceptional agility without sacrificing cooling capacity. The physical architecture spans multiple geometric configurations, including densely packed plate-fin, omnidirectional cylindrical pin-fin, and aerodynamically optimized elliptical fin structures. Each design variant is mathematically calculated to maximize the exposed surface area within confined spatial footprints, perfectly accommodating various BGA and surface-mount chipsets. By tailoring the alloy composition and fin density, the thermal resistance at the contact base is minimized. This allows for the rapid absorption of heat spikes from dense processing units, preventing thermal throttling and ensuring consistent computational output. The structural rigidity inherent in these designs prevents warping under continuous thermal cycling, ensuring long-term mechanical stability across the entire motherboard.

Dynamic Cooling Performance Strategies

Depending on the specific thermal envelope and acoustic requirements of the target device, the heat sink architecture supports passive, active, and hybrid cooling strategies tailored to specific operational demands:

• Passive Dissipation: Relies entirely on natural convection, utilizing the expansive surface area of the elliptical or plate fins to silently radiate heat away from the core without any moving parts, eliminating mechanical failure points.
• Active Integration: Pairs seamlessly with directed airflow mechanisms. The precise aerodynamic fin spacing reduces static pressure drops, allowing cooling fans to push large volumes of air through the channels with minimal turbulence and acoustic resonance.
• Ultra-Low Thermal Resistance: The contact base is machined to exacting flatness tolerances, creating an immediate and highly efficient thermal bridge that rapidly conducts and disperses concentrated heat from high-wattage silicon components.
• Hybrid Configurations: Combines phase-change vapor chambers or embedded heat pipes with the extruded base, spreading localized hot spots across the entire fin array to achieve accelerated thermal equilibrium under extreme processing loads.

Mounting Hardware and Interface Materials

Securing the heat sink requires consistent and even mounting pressure to maintain optimal thermal contact across the entire processor die. The included hardware ecosystem significantly simplifies the assembly process while ensuring a gap-free, secure fit that withstands transit vibrations.

Rigorous Validation and Deployment Scenarios

Reliability in extreme environments is a fundamental requirement for modern electronics. Every thermal module undergoes exhaustive thermodynamic chamber testing, simulating the intense thermal cycling, humidity variations, and environmental stressors typically found in demanding industrial and military-grade applications. This rigorous validation ensures the structural and thermal characteristics remain stable over extended operational lifespans, preventing premature hardware failure. Furthermore, strict adherence to RoHS and REACH certifications guarantees environmental compliance and material safety across all global markets.

These validated cooling solutions are extensively deployed across highly demanding technology sectors. They provide critical thermal management for central processing units (CPUs), graphics processing units (GPUs), and application-specific integrated circuits (ASICs). In high-computing server racks, hyperscale data centers, and mission-critical embedded systems, the ability to maintain optimal operating temperatures directly correlates to sustained computational throughput, reduced energy consumption, and maximized hardware longevity.

End-to-End Thermal Customization Services

Standardized solutions may not always align with proprietary hardware constraints or unique spatial limitations. To bridge this engineering gap, comprehensive end-to-end custom cooling solutions are available, transforming conceptual thermal requirements into physical, deployment-ready components. This dedicated service begins with advanced thermodynamic simulation analysis, utilizing computational fluid dynamics to visualize heat flow and optimize fin geometry before any physical manufacturing commences.

Following the digital validation, rapid prototyping capabilities allow engineering teams to test physical samples and validate thermal performance within their actual hardware ecosystem. The manufacturing process then scales seamlessly from prototype to mass production, utilizing precision casting and advanced extrusion techniques that maintain strict dimensional tolerances. Throughout this journey, specific attention is given to acoustic optimization and precise thermal calculations, ensuring the final custom heat sink perfectly balances thermal dissipation, weight, and acoustic output for its specific application environment.
