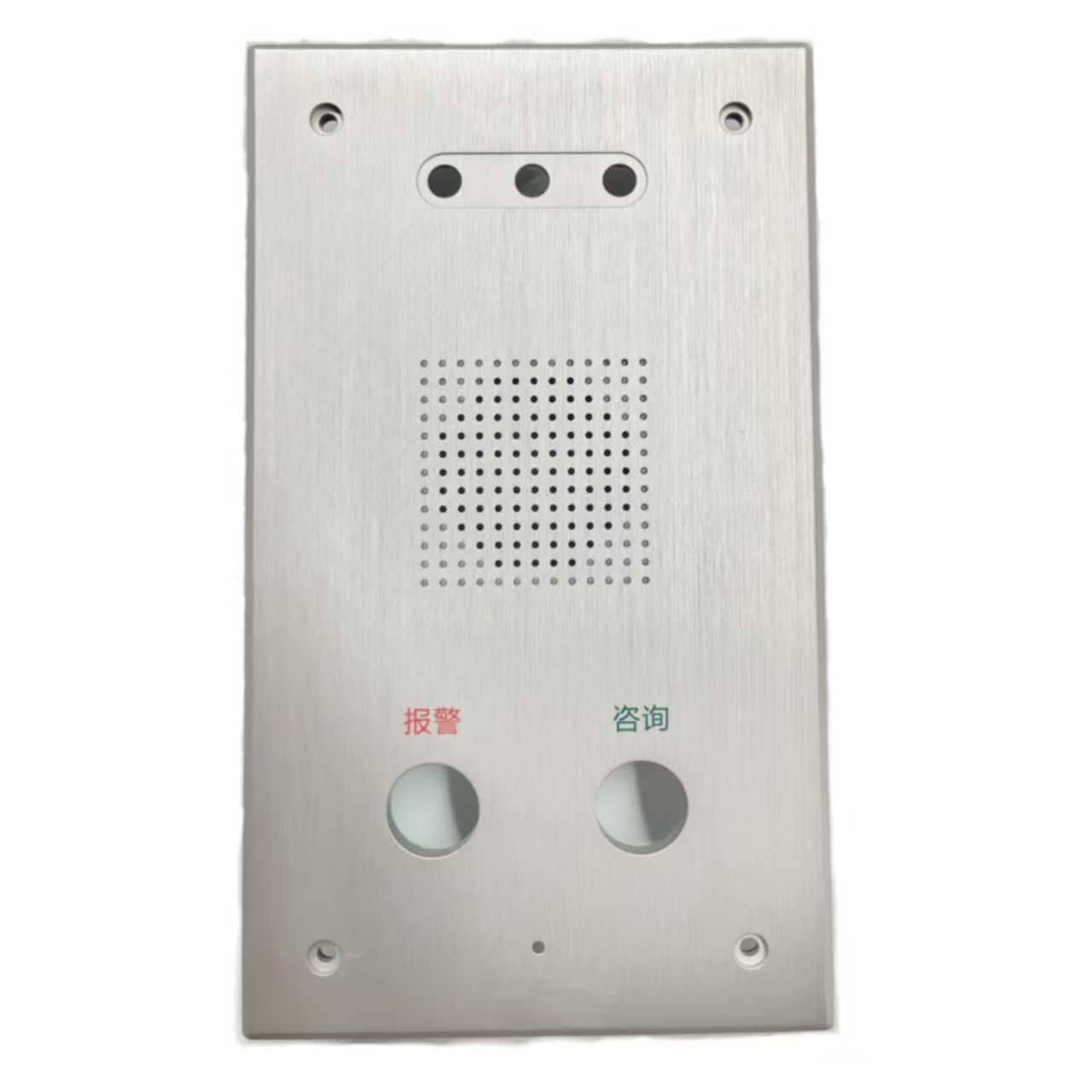

The mechanical difference between aluminum manufacturing processes dictates component success or failure. Extrusion forms a continuous shape through plastic deformation. It pushes heated metal through a steel die. Conversely, CNC machining subtracts material from a solid block. It uses rotating cutting tools to achieve the final geometry. Choosing the wrong method introduces severe operational risks. Misaligning the manufacturing process with part requirements wastes machine time. You might incur unnecessary CNC cycle times for linear profiles. Alternatively, you could face prohibitive extrusion tooling costs for low-volume, complex three-dimensional parts. Engineers must evaluate components based on geometric constraints, structural integrity, production volume thresholds, and tolerance requirements. Understanding these variables allows for the strategic use of secondary operations. This optimizes unit economics. By analyzing the mechanical limitations and advantages of each process, teams determine the most efficient path from raw billet to finished part.
Geometry Dictates the Baseline: Aluminum extrusion is strictly limited to parts with a constant cross-section (2D profiles extended into 3D), whereas CNC machining accommodates complex, multi-axis 3D geometries.
Volume Drives the Economics: Extrusion requires upfront investment in custom steel dies but offers exceptionally low per-part costs at scale. CNC machining requires zero physical tooling investment but incurs higher per-part costs due to machine time and material waste.
The Hybrid Advantage: The most cost-effective solution for complex linear parts is often a combination of both—extruding the near-net shape and utilizing secondary aluminum profile processing (CNC) for precise features, holes, and tight tolerances.
Material Yield & Integrity: Extrusion generates minimal scrap and yields beneficial directional grain structures, whereas machining from solid billet can result in material waste exceeding 70%, directly impacting high-volume production costs.
The process of Aluminum Extrusion relies on massive hydraulic presses to force heated aluminum logs through a custom-profiled steel die. Operators heat the aluminum billet to a pliable state, typically between 800 and 900 degrees Fahrenheit. A hydraulic ram then pushes the softened metal through the die opening. The metal emerges onto a runout table as a continuous length with a specific cross-sectional profile. This method excels at creating complex internal cavities, multi-hollow structures, and continuous external features like cooling fins or mounting tracks. The primary limitation remains strictly geometric. The profile must remain entirely constant along the entire length of the extrusion, known as the Z-axis. Any feature that requires a change in this cross-section, such as a stepped diameter or a blind pocket, cannot be extruded directly.
Die design plays a massive role in extrusion capabilities. Solid dies produce simple shapes like rods and angles. Porthole dies split the metal flow and rejoin it around a mandrel to create hollow sections. The friction between the aluminum and the die bearing surfaces dictates the metal flow rate. Engineers must balance wall thicknesses to prevent the profile from twisting or tearing as it exits the press. After extrusion, the profile undergoes quenching, stretching to ensure straightness, and artificial aging in an oven to achieve the final temper.
Computer numerical control milling and turning rely entirely on subtractive manufacturing principles. A solid block or billet of aluminum is secured in a workholding device. Automated, rotating cutting tools remove material to reveal the final shape. This process achieves varying cross-sections, intricate surface details, and multi-directional features across all axes. Modern 5-axis machining centers can articulate the tool and the workpiece simultaneously, allowing for undercuts and complex contoured surfaces.
The limitation here is driven by cycle time, tool access, and material removal rates. Deep cavities require long, slender tools that are prone to chatter and deflection. Sharp internal corners require tiny endmills that must run at lower feed rates. High material-removal rates require extensive machine time, rigid setups, and high-pressure coolant systems to evacuate chips. Every minute the spindle runs adds direct variable cost to the component.
Manual and semi-automatic aluminum machining typically involves basic, low-tolerance cutting on shop floor equipment. Operators use cold saws, manual drill presses, and tapping arms to modify pre-formed extrusions. This approach works well for simple brackets, cut-to-length tasks, or basic clearance holes where positional accuracy is not critical. It requires minimal setup time and utilizes inexpensive equipment.
Multi-axis CNC machining relies on programmed toolpaths to execute high-precision operations. Engineers specify CNC equipment for complex structural parts requiring exact concentricity, tight positional tolerances, and complex surface interpolations. CNC machines utilize automatic tool changers, probing cycles for part alignment, and rigid tapping capabilities. While the setup and programming take longer, the automated execution ensures repeatability across thousands of parts.
The primary success criterion for extrusion is a part design featuring a uniform cross-section. Common applications include heat sinks, structural framing, track systems, and electronic enclosures. The distinct design advantage lies in the ability to integrate functional elements directly into the profile. Snap-fits, screw bosses, and interlocking joints can be engineered into the die. This eliminates the need for secondary assembly, welding, or joining operations. If the design can be visualized as a two-dimensional shape stretched infinitely into the third dimension, it is a prime candidate for extrusion.
Engineers must respect specific design rules for extrusion. Wall thicknesses should remain as uniform as possible to prevent distortion during cooling. High aspect ratio fins require specialized die designs and slower press speeds. Tongue ratios—the depth of a channel compared to its width—must be kept within safe limits to prevent the die steel from snapping under pressure.
CNC machining is required when the part demands non-uniform cross-sections, intersecting angles, or features that physically cannot be pushed through a two-dimensional die. The success criteria involve complex geometries such as organic shapes, localized pockets, and varying wall thicknesses across different planes. Aerospace bulkheads, complex fluid manifolds, and medical device housings rely heavily on subtractive machining.
The design advantage is unrestricted three-dimensional geometry. Engineers have the freedom to design components optimized for weight reduction and complex mechanical interfaces without worrying about constant cross-section rules. You can design pockets with varying depths, intersecting bores for fluid routing, and complex 3D surfacing for aerodynamic profiles.
Structural suitability varies significantly between extruded profiles and solid machined components in load-bearing applications. Machined components from solid billet offer superior rigidity and isotropic strength. This makes them ideal for high-stress, precision environments like machine tool bases or aerospace structural members. The solid mass provides excellent vibration dampening characteristics.
Modular T-slot extruded rods face engineering limitations regarding structural deflection, joint slippage, and mechanical vibration dampening. While hollow extrusions offer an excellent strength-to-weight ratio, an assembled frame relies on mechanical fasteners. These joints can slip under heavy dynamic loads. A single-piece, rigid CNC-machined frame will always outperform an assembled extruded frame in dynamic load scenarios, though the latter offers unparalleled modularity and ease of assembly.
Performance Metric | Solid Machined Billet | Hollow Extruded Profile |
|---|---|---|
Torsional Rigidity | Excellent (Isotropic mass) | Moderate (Depends on internal webbing) |
Vibration Dampening | High (Solid mass absorbs resonance) | Low to Moderate (Hollow sections can ring) |
Joint Integrity | Monolithic (No joints) | Relies on mechanical fasteners |
Strength-to-Weight Ratio | Moderate | Excellent |
Standard industry tolerances for extrusions are governed by specifications such as ASTM B221 or EN 755. These tolerances account for the physical realities of pushing hot metal through steel. Die wear, thermal dynamics during cooling, and the stretching process used to straighten the profile all affect dimensional accuracy. Consequently, extrusion tolerances are generally looser than machined tolerances.
Features like wall thickness and overall profile dimensions will exhibit slight variations from batch to batch. A standard tolerance for a one-inch dimension might be +/- 0.008 inches. Extrusions also have specific tolerances for straightness, twist, and angularity. Engineers cannot expect bearing-fit precision straight off the press.
CNC machines hold extremely tight tolerances, routinely achieving +/- 0.001 inches or tighter depending on the equipment, tooling, and thermal control of the shop environment. This level of precision is necessary for bearing fits, sealing surfaces, and complex mating components. CNC machining also plays a critical role in achieving superior flatness and exact concentricity.
To achieve these tight tolerances, machinists follow specific steps:
Establish a highly rigid workholding setup to prevent part deflection.
Utilize roughing passes to remove bulk material and relieve internal stress.
Allow the part to normalize to room temperature.
Execute light finishing passes with sharp, high-quality carbide endmills.
Verify dimensions using on-machine probing or CMM inspection.
The initial cost of extrusion dies is relatively low to moderate. It depends entirely on the complexity of the profile, the number of hollow voids, and the size of the press required. Once the die is cut from H13 tool steel and nitrided for wear resistance, the variable costs are primarily raw material and press time. In contrast, CNC machining carries zero physical tooling investment upfront. You only pay for programming and fixture setup.
However, the variable costs for machining are significantly higher. CNC incurs high machine-hour rates, continuous tooling wear, and higher labor costs for setup and monitoring. Every cubic inch of material removed costs money in machine time and tool degradation.
Determining the production volume where the cost of an extrusion die is amortized is critical. At low volumes, machining from solid stock is more economical because the lack of tooling costs offsets the higher per-part machine time. As volume increases, the rapid production rate of extrusion quickly eclipses the initial die investment.
Prototyping typically relies on CNC to validate the design without committing to tooling. Once the design is locked and production scales, the strategy shifts toward extrusion to minimize unit costs. If a part requires heavy material removal and the annual volume exceeds a few hundred units, investing in an extrusion die usually pays off within the first production run.
The buy-to-fly ratio evaluates how much raw material ends up in the final part. Machining from a solid block wastes significant material. In aerospace applications, it is common to turn more than 80 percent of the billet into chips. While aluminum chips are recyclable, melting them down consumes massive amounts of energy.
Extrusion utilizes nearly 100 percent of the billet for the profile shape, drastically reducing raw material expenditure. The only scrap generated is the "butt" end of the log left in the press and the crop ends cut off during stretching. This high material yield makes extrusion inherently more efficient for linear parts. You only pay for the aluminum that actually forms the component.
The most efficient manufacturing strategy often involves combining both methods. Engineers use extrusion to create a near-net shape blank, capturing the bulk of the geometry. This blank is then subjected to CNC machining to add the precise features, pockets, and holes that extrusion cannot achieve. This hybrid workflow represents the peak efficiency of modern Aluminum Profile Processing. It leverages the high material yield of extrusion with the tight tolerances of subtractive manufacturing.
By extruding the complex cross-section first, you eliminate the need to machine deep channels or external fins. The CNC machine is only responsible for localized features. This approach requires specialized workholding to grip the extruded profile securely without crushing it during the machining cycle.
Specific post-extrusion operations prepare the profile for final assembly. Multi-axis CNC profile machining centers are designed specifically to handle long, extruded workpieces. These specialized machines perform operations along the entire length of the extrusion without requiring multiple setups, ensuring positional accuracy across long distances.
Common secondary operations include:
Notching to create seamless joints or prepare interlocking nodes for structural frames.
Drilling and rigid tapping for fastener integration.
Face milling to achieve high-flatness mating surfaces.
Interpolating precise bearing bores or alignment pin holes.
Starting with an extruded profile reduces CNC material removal requirements by 80 to 90 percent. Instead of hogging out a solid block of billet with heavy roughing passes, the CNC machine only needs to perform light finishing passes and localized feature creation. This drastically cuts machine cycle times.
Shorter cycle times mean higher throughput and lower variable costs. It also reduces cutting tool wear, saving money on expensive carbide endmills. The near-net shape strategy is fundamental to high-volume production of complex linear parts. It allows manufacturers to maximize spindle uptime for high-value precision work rather than basic material removal.
The plastic deformation inherent in extrusion affects the metal's grain structure. It creates a longitudinal alignment that enhances tensile strength and toughness along the extrusion axis compared to isotropic cast alloys. Common extruded alloys, such as 6061-T6 and 6063-T5, offer excellent machinability.
During secondary machining, 6061-T6 exhibits predictable chip control. It breaks into small chips rather than forming long, stringy bird nests that clog the machine. It allows for aggressive cutting speeds and minimizes tool wear. 6063-T5 is slightly softer and often used for architectural applications where surface finish after anodizing is paramount. Both are superior to many cast alternatives for precision secondary operations.
Machining heavily into an extruded profile can release internal stresses trapped during the forming and quenching process. When you machine away the outer "skin" of the extrusion, the uneven stress distribution causes the part to warp, bow, or twist out of tolerance. This is a major risk for long, slender components.
To mitigate this risk, engineers must specify appropriate thermal treatments. Requesting a T6511 temper means the extrusion has been thermally treated and mechanically stretched to relieve internal stress. Additionally, optimizing CNC tool paths to balance material removal equally across both sides of the part helps maintain dimensional stability during the machining process.
Extrusion requires custom die manufacturing and typically involves minimum order quantities. A standard run might require a 1,000-pound minimum. This extends initial lead times and ties up capital in inventory. Furthermore, the first run of a new die often requires corrections. The die maker must manually adjust the steel to bring the profile into tolerance.
A standard mitigation strategy involves using CNC machining from solid billet for initial low-volume production and field validation. While these machined prototypes are being tested and sold, the extrusion die is cut, tested, and corrected. This allows for a seamless transition to high-volume production once the design is finalized and demand scales.
Audit your current CAD library to identify components with constant cross-sections that can be converted to near-net shape extrusions.
Calculate the buy-to-fly ratio for your highest-volume machined parts to determine potential material savings.
Request a near-net shape extrusion profile quote for any linear parts exceeding 1,000 units annually.
Update your engineering drawings to specify T6511 temper for extruded parts requiring heavy secondary milling to prevent warpage.
A: Extruded surfaces show die lines and minor imperfections from the steel bearing surfaces. Achieving a true mirror finish requires secondary operations such as mechanical polishing, fine CNC face milling, or chemical brightening prior to anodizing.
A: Lead times for new extrusion dies generally range from two to six weeks. This depends on the profile's complexity, the size of the die, and the current workload of the tool and die maker. Die corrections can add another week.
A: Extruded parts exhibit directional strength due to their longitudinal grain structure. They are highly strong along the extrusion axis. Isotropic machined billet offers more uniform strength across all axes depending on the specific alloy and temper.
A: Yes, a single extrusion profile can feature varying wall thicknesses across its cross-section. However, the thickness must remain constant along the entire length of the extrusion. Extreme variations in thickness can cause distortion during cooling.
A: Warpage occurs when machining removes material unevenly, releasing internal stresses trapped during the extrusion and quenching process. Using stress-relieved tempers like T6511 and balancing material removal helps prevent this issue.
A: No, internal threads cannot be extruded directly. Extrusion can create the precise pilot hole, often called a screw boss. The actual threads must be added through secondary CNC tapping or thread milling operations.
