In high-volume metal manufacturing, balancing unit volume, dimensional precision, and material strength dictates the viability of a product line. Selecting an incompatible manufacturing process for metal components results in prohibitive tooling expenses, unacceptable per-unit scaling, or structural failures due to porosity and poor tolerance control. For procurement managers and product engineers, determining whether to commit to Die Casting requires a rigorous evaluation of production volume thresholds, material properties, and industry-specific compliance standards. This guide breaks down the technical and economic criteria for specifying these manufacturing components, focusing on practical application and production realities on the factory floor.
Volume Dictates Viability: The high initial capital expenditure (CapEx) for hardened steel molds requires production runs typically exceeding 5,000–10,000 units to achieve a viable break-even point against CNC machining.
Material Constraints: Die casting is strictly limited to non-ferrous metals (aluminum, zinc, magnesium, and copper alloys) due to the melting point limitations of the steel dies.
Design for Manufacturability (DFM): Successful die casting parts require strict adherence to uniform wall thicknesses, draft angles, and strategic venting to mitigate inherent risks like gas porosity and shrinkage.
Post-Processing Realities: While die casting yields excellent net-shape parts, high-precision mating surfaces often still require secondary CNC machining operations.

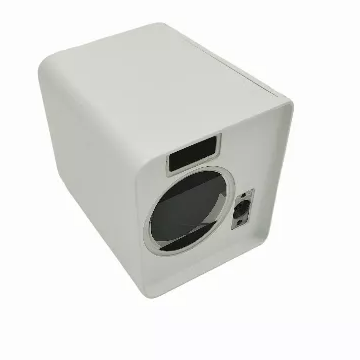

The fundamental physics of this manufacturing method rely on forcing molten non-ferrous alloys into hardened steel dies under extreme hydraulic pressure. This high-velocity injection ensures the liquid metal rapidly fills complex cavities before solidifying, resulting in highly dense, dimensionally accurate shapes. Unlike gravity-fed casting methods, the intense pressure packs the metal tightly against the mold walls. This action captures fine details and achieves excellent surface finishes right out of the tool. We see this daily on the floor: a well-maintained die running at optimal pressure produces parts that need minimal surface rework.
The production cycle operates in five distinct, highly automated stages. Operators monitor these stages closely to maintain yield rates and prevent tool damage.
Preparation and Lubrication: Automated sprayers coat the die cavities with a water-based release agent. This coating controls the thermal gradient of the steel and prevents the molten alloy from soldering to the mold, ensuring smooth part ejection.
Clamping: The two halves of the steel die lock together under massive hydraulic force. Machines range from 400 to over 4,000 tons of clamping force to withstand the internal pressure of the incoming metal without flashing.
Injection: The molten metal rams into the mold cavity at high velocity. The speed is critical. The cavity must fill completely in milliseconds before any part of the metal begins to freeze and create cold shuts.
Cooling and Solidification: The component solidifies rapidly within the water-cooled die. Internal conformal cooling channels pull heat away from thick sections to prevent shrinkage voids.
Ejection and Trimming: The machine opens, and ejector pins push the solidified component out of the mold. The newly formed piece, complete with excess runner, gating, and flash material, transfers to a trim press where operators shear away the scrap for recycling.
The machinery used to produce Die Casting Parts falls into two primary classifications based on the melting point of the alloy.
Hot-Chamber Machines: Used exclusively for low-melting-point metals like zinc and lead. The injection mechanism sits permanently submerged in a holding pot of molten metal. This direct feed enables extremely rapid cycle times, sometimes producing multiple parts per minute. Tool wear is minimal because the temperatures remain relatively low.
Cold-Chamber Machines: Required for high-melting-point metals like aluminum and copper. If you kept these metals in a hot-chamber setup, they would rapidly degrade the submerged steel pumping system. Instead, an automated ladle transfers the exact amount of molten metal needed for one shot into a cold chamber just before a hydraulic plunger forces it into the die.
Specifying a component for this process requires aligning the design with specific success criteria. The method excels when producing small-to-medium parts that feature complex geometries, thin walls, and a strict requirement for high repeatability across thousands of cycles. When a design demands structural rigidity combined with intricate internal features that would be impossible to machine efficiently, injection-based metal forming becomes the logical choice. You get the strength of metal with the design flexibility usually reserved for injection-molded plastics.
Comparing this process to alternative manufacturing methods highlights its strategic advantages and limitations on the production floor.
Manufacturing Process | Tooling Investment | Unit Cost at Scale | Surface Finish | Best Application |
|---|---|---|---|---|
High-Pressure Injection | High (Hardened Steel) | Very Low | Excellent (Net-Shape) | High-volume, complex non-ferrous parts |
CNC Machining | None (Fixtures only) | High (Material Waste) | Superior | Low-volume, ultra-high precision parts |
Sand Casting | Low (Sand Molds) | Medium | Rough (Requires Machining) | Massive, heavy iron or steel components |
Investment Casting | Medium | High (Labor Intensive) | Very Good | Complex ferrous parts, low to medium volume |
Against CNC machining, the primary differentiator is the economic model. Machining requires zero upfront tooling but carries a high, static unit cost due to material waste and machine time. Casting requires a massive upfront investment in steel molds, but the unit cost drops precipitously as volume increases. When evaluated against sand casting and investment casting, the high-pressure method offers vastly superior surface finishes and tighter dimensional tolerances. Sand casting leaves a rough, granular surface and requires significant machining. Investment casting involves slow, labor-intensive cycles. High-pressure injection delivers net-shape parts in seconds, drastically reducing cycle times and scrap rates.
Compared to Metal Injection Molding (MIM), the differences lie in scale and material properties. MIM restricts you to very small, highly intricate parts and relies on a binder-removal and sintering process that can lead to unpredictable shrinkage. High-pressure liquid metal injection accommodates much larger components, offers faster cycle speeds, and provides superior structural integrity for load-bearing applications.
The push for lightweighting dominates the automotive and aerospace sectors. Manufacturers must continuously reduce vehicle weight to meet stringent fuel efficiency standards, comply with emissions regulations, and extend the range of electric vehicle (EV) batteries. Replacing heavy cast iron or assembled steel components with single-piece, lightweight non-ferrous castings is a primary strategy for achieving these weight reduction targets without sacrificing structural integrity. We see entire sub-assemblies consolidated into single cast parts to save weight and assembly time.
Specific automotive applications rely heavily on this manufacturing method. Cylinder blocks, oil pans, engine blocks, and transmission housings are traditional staples. In the modern era, the focus has shifted toward structural brackets and complex EV motor housings. These components require excellent thermal management to dissipate heat generated by electric drivetrains, a property inherent to specific aluminum alloys.
Safety and structural integrity remain paramount. Crash-relevant cast parts must exhibit predictable deformation characteristics to absorb impact energy. Engineers must carefully select alloys and control the manufacturing process to minimize porosity, ensuring the final components possess the necessary load-bearing capacity and crashworthiness required by strict transportation safety standards. Vacuum-assisted casting is often mandatory for these structural nodes.
In the consumer electronics and telecommunications sectors, the demand for ultra-compact designs introduces severe thermal and electromagnetic challenges. Devices pack increasingly powerful processors into shrinking form factors. Metal housings manufactured through high-pressure injection serve a dual purpose. They act as robust structural chassis while providing built-in EMI/RFI shielding and highly efficient heat dissipation.
Specific electronics applications include telecommunication base station housings, which must withstand harsh outdoor environments while managing immense heat loads. Inside consumer devices, you will find laptop chassis and smartphone internal frame brackets. These components require extreme rigidity to protect fragile glass and silicon components from bending and impact forces. Magnesium is often the go-to metal here for its weight-to-stiffness ratio.
Cosmetic surface standards are equally critical in consumer-facing products. The ability to cast extremely thin walls allows for sleek device profiles. The as-cast surface must readily accept aesthetic and protective finishes. Components frequently undergo anodizing, plating, or painting, requiring a defect-free surface finish straight from the mold to prevent cosmetic rejections. Any flow marks or cold shuts will show right through a powder coat.

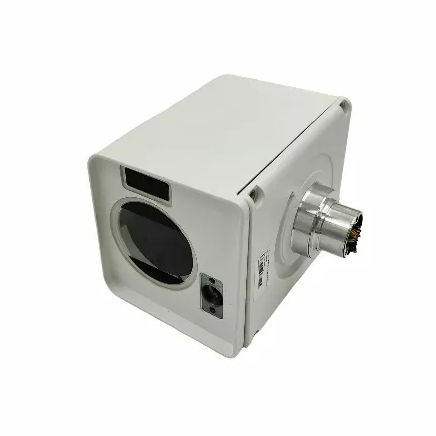

Industrial environments demand rugged environmental protection. Sensitive internal electronics, sensors, and mechanical assemblies require housings that are durable, corrosion-resistant, and dust-tight. Metal castings provide a rigid, impenetrable barrier against factory floor contaminants, moisture, and physical impacts that plastics simply cannot match over a long service life.
Specific industrial applications span a wide range of heavy-duty equipment. Pump housings, pneumatic tool bodies, diagnostic equipment chassis, and complex valve bodies are routinely manufactured using this method. These parts often feature complex internal fluid channels and require high burst-pressure ratings. You need tightly controlled manufacturing parameters to ensure dense, leak-free walls.
Medical devices introduce another layer of complexity regarding regulatory and cleanliness standards. Cast components used in surgical tools or diagnostic machinery must withstand repeated sterilization cycles, including harsh chemical wipe-downs and high-temperature autoclaving. The selected alloys and surface treatments must be biocompatible where necessary and highly resistant to chemical degradation to meet strict medical industry regulations.
Aluminum is the dominant material in the industry, prized for its exceptional strength-to-weight ratio. Alloys like A380 and A360 maintain high dimensional stability even at elevated operating temperatures. Aluminum offers excellent thermal and electrical conductivity, making it the default choice for heat sinks, engine components, and electronic housings. It machines well, allowing for precise secondary operations on mating surfaces.
Aluminum presents specific manufacturing trade-offs. It has a high melting point and a strong chemical affinity for iron, making it prone to soldering to the steel die during injection. To prevent rapid tool degradation, aluminum must be processed in cold-chamber machines. This ladling process slightly increases cycle times compared to the continuous feed of hot-chamber setups. Die life is also shorter, typically requiring replacement or major overhaul around 100,000 shots.
Zinc alloys, particularly the Zamak series, offer superior ductility and high impact strength. Zinc's primary advantage is its fluidity. It can fill extremely intricate, thin-walled details with minimal draft angles. Because of its lower melting point, zinc is processed via hot-chamber machines. This allows for ultra-fast cycle times and exceptional tool life, with steel dies often exceeding one million cycles before requiring replacement.
The trade-offs for zinc involve weight and thermal limits. Zinc is significantly heavier than aluminum, which rules it out for strict lightweighting applications. Zinc experiences a noticeable loss of mechanical strength and creeps at elevated temperatures, generally limiting its use to environments operating below 200°F (93°C). It is excellent for decorative hardware and small mechanical gears.
Magnesium is the lightest structural metal available, making it highly desirable for aerospace and portable electronics. Alloys like AZ91D offer excellent machinability, high strength-to-weight ratios, and superior thin-wall casting capabilities. It provides the rigidity of metal at a weight closer to dense plastics. It also dampens vibration exceptionally well.
The drawbacks of magnesium center on cost and handling. The raw material is more expensive than aluminum or zinc. Magnesium requires specialized tooling and strict safety protocols due to severe flammability risks. Magnesium dust and shavings generated during secondary machining are highly combustible, requiring specialized extraction and suppression systems on the factory floor.
The initial capital expenditure for steel molds represents the most significant barrier to entry for this manufacturing process. The cost drivers for die creation are substantial. Molds must be machined from high-grade tool steel, such as H13, to withstand thermal shock and immense clamping pressures. Mold complexity drastically increases costs. Features like side-action sliders for undercuts, hydraulic lifters, and multi-cavity designs require intricate engineering and precision machining.
Modern dies often incorporate conformal cooling channels. These complex internal water lines follow the contours of the part to ensure rapid, uniform cooling, which reduces cycle times and minimizes warping. While these features increase the upfront cost, they are essential for maximizing production efficiency and maintaining tight tolerances across long runs.
Understanding tooling lifespan and amortization is critical for financial planning. The expected lifecycle of a die depends heavily on the chosen alloy. Zinc dies, operating at lower temperatures, can last for over a million shots. Aluminum dies endure severe thermal stress and typically require major refurbishment or replacement after 100,000 to 150,000 shots. You must amortize this tooling cost across the expected production volume to determine the true per-part cost.
Evaluating financial viability requires a comprehensive comparison framework against alternative methods like CNC machining across various volume tiers. At 1,000 units, the high upfront tooling cost of casting usually makes CNC machining the more economical choice. As volumes approach 10,000 units, the rapid cycle times and low material waste of casting begin to offset the initial mold investment. At 100,000 units, casting becomes overwhelmingly more cost-effective.
A precise break-even analysis must factor in more than just machine time and raw material. Secondary operations and scrap factors heavily influence the final unit cost. If a cast part requires extensive secondary CNC machining to hit tight tolerances on mating surfaces, the unit cost increases. The ability to recycle casting scrap—runners, flash, and rejected parts—directly back into the melting furnace provides a significant material cost recovery that machining cannot match.
The physical realities of high-pressure injection inherently introduce the risk of defects. Gas porosity occurs when air inside the mold cavity or gases from vaporized lubricants become entrapped in the turbulent flow of the incoming molten metal. Shrinkage porosity happens during the solidification phase. As the metal cools and contracts, voids can form in thicker sections that are isolated from the flow of pressurized liquid metal.
Industrial mitigation strategies are essential to produce structurally sound components. Vacuum-assisted systems evacuate air from the die cavity milliseconds before injection, drastically reducing gas porosity. Squeeze casting techniques apply sustained high pressure during solidification to feed molten metal into shrinking areas. Engineers utilize advanced thermal and fluid flow modeling software during the DFM phase to optimize gating and venting designs, ensuring smooth metal flow and directional solidification.
Establishing realistic tolerances is crucial for managing project costs. While the process is highly precise, "as-cast" linear and dimensional tolerances typically hover around ±0.002 inches per inch. Expecting tighter tolerances straight from the mold will lead to high rejection rates and unnecessary tool wear. You have to design with the process limits in mind.
Specifying secondary operations is a standard part of the manufacturing workflow. Secondary CNC machining is mandatory when the design requires features that cannot be cast, such as tapped internal threads, high-tolerance bearing seats, or precision O-ring grooves for fluid seals. Designing the part to minimize these secondary operations is a key principle of cost reduction.
Surface treatments are applied to enhance performance and aesthetics. Depending on the alloy and application, parts may undergo anodizing for increased surface hardness, powder coating or e-coating for durable environmental protection, or electroplating for cosmetic appeal and EMI shielding. The quality of the underlying casting directly dictates the success of these final finishing steps. A porous surface will outgas during powder coating, causing blisters.
To successfully leverage this high-volume manufacturing process, engineering and procurement teams must align their design parameters with the physical and economic realities of the method. Follow these actionable steps to move forward:
Audit your projected production volumes to ensure they exceed the 5,000-unit threshold necessary to amortize the initial steel tooling investment effectively.
Conduct a rigorous DFM review early in the design phase, focusing on uniform wall thicknesses and eliminating unnecessary undercuts to simplify mold design.
Select your alloy based strictly on the operating environment, balancing the thermal conductivity of aluminum, the rapid cycle times of zinc, or the lightweight properties of magnesium.
Identify all critical mating surfaces and tight-tolerance features upfront, and budget for the necessary secondary CNC machining operations.
A: The high cost of hardened steel molds generally requires a minimum production run of 5,000 to 10,000 units to achieve a viable break-even point compared to CNC machining.
A: No. The process is restricted to non-ferrous metals such as aluminum, zinc, and magnesium. Ferrous metals have melting points that are too high and would melt or severely damage the steel molds used for injection.
A: Uniform wall thickness is critical. Thick sections cool slower than thin sections, leading to internal shrinkage porosity and external surface warping. Designs should maintain consistent thickness and use ribbing for structural support instead of solid mass.
A: Not always, but it is highly common. While the process produces near-net shapes, features requiring extreme precision, such as bearing press-fits, O-ring grooves, or threaded holes, typically require secondary CNC machining.
A: Gas porosity occurs when air inside the mold cavity or gases from vaporized die lubricants are trapped by the turbulent, high-velocity flow of molten metal before they can escape through the mold's venting system.
