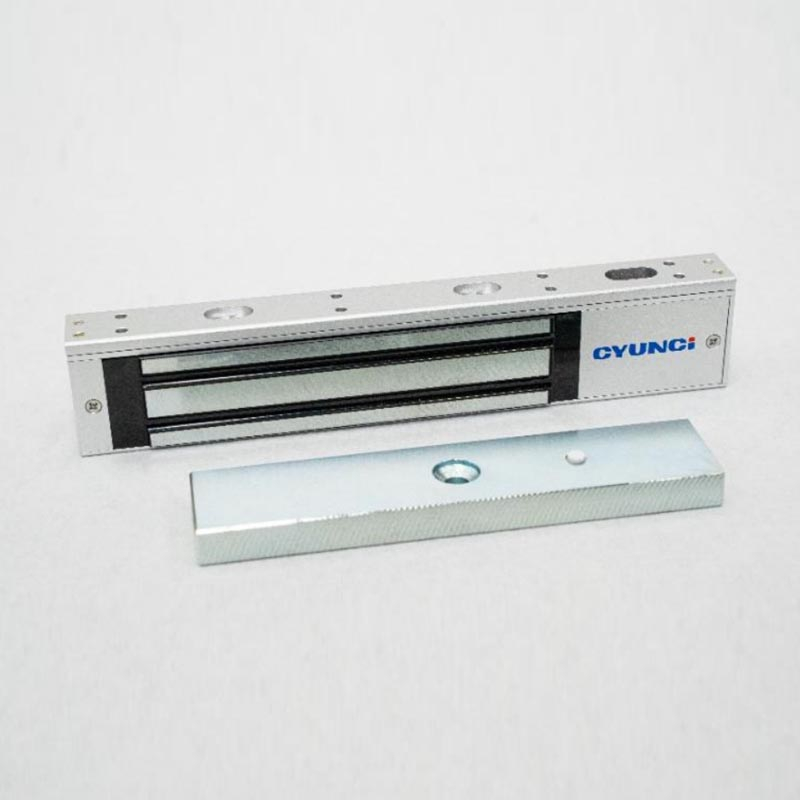

YC-220SCT single door magnetic lock is suitable for wooden doors,glass doors, fire doors and metal doors. It has signal output function, is safe and reliable, and is compatible with frameless and narrow frame glass doors.
| Product number | YC-220SC | YC-220SCT |
|
| Lock body size | 250*47*26(mm) |
|
| Suction plate size | 180*38*11(mm) |
|
| Maximum pulling force | Straight line pull 220KG |
| Gate signal output | none | have |
| lock signal output | none | have |
| OperatingVoltage | DC12V DC24V |
|
| Working current | 12V/480mA
24v/240mA |
|
| Product weight | 2KG |
|
| Applicable door type | Wooden doors, metal doors, glass doors, fire doors, etc. |
